Sludge Pro 10DDMK

10DDMK Double Disc Pump

The Sludge Pro 10DDMK double disc pump is designed to pump sewage and sludge up to 1650 GPM.

  • Induced flow double disc pump
  • 10" connection
  • Runs dry without damage
  • Bet driven or direct drive
  • Pump up to 1650 GPM

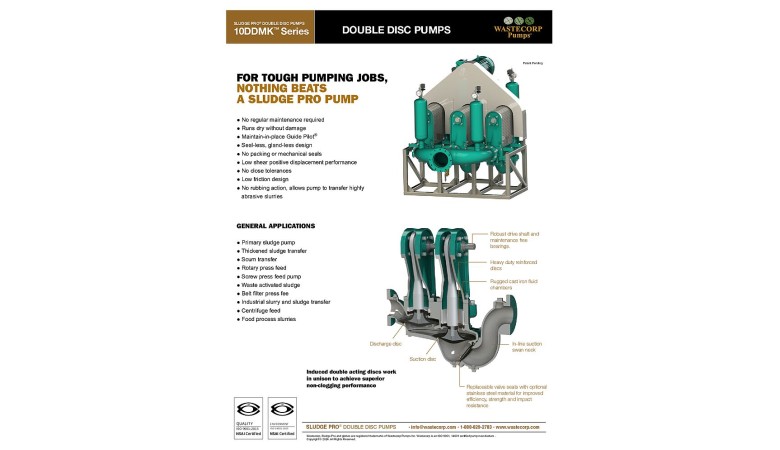

Factsheet



The Sludge Pro 10DDMK Double Disc Pump designed and manufactured by Wastecorp Pumps offers up to 1650 GPM pumping capabilities for the toughest applications. With a 10” connection you can tackle the toughest urban, suburban or rural sewage transfer applications. Wastewater treatment plant operators find success with a Wastecorp double disc pump in primary sewage, WAS, RAS transfer, GBT applications lime slurry and lime sludge applications and much more.


NO REGULAR MAINTENANCE REQUIRED

The Sludge Pro is easy to operate and a productivity booster for your operators. No regular maintenance required.

CONFIGURATION OPTIONS

Wastecorp offers several configuration options that will work with your facility layout and budget. Select from the standard side mount belt driven configuration, piggy back  design or the Wastecorp exclusive direct drive with rotating frame. With Wastecorp's rotating frame, occasional maintenance is unbolting the connection, rotating the frame and getting back to business.

REPLACEABLE VALVE SEATS

Optional stainless steel valve seats provide improved efficiency, strength and impact resistance.

ROBUST DRIVE SHAFT

Today's pumping applications require the strongest pumps made with the ultimate components to work day-in-day-out. Wastecorp offers some of the strongest shafts in the business with maintenance-free bearings to provide hassle-free pumping for your team.

TRUNNION OPTIONS

Wastecorp trunnions are available in many varieties that are compatible for various municipal sludge pumping applications and industrial fluid handling applications including chemical pumping, food processing pumps and more.

NEXT GENERATION DRIVE SYSTEMS

Select from belt driven or direct drive pump options.

OPTIONAL ROTATING FRAME

Wastecorp's exclusive optional rotating frame provides easy access to pump internals for easy maintenance.

ISO CERTIFIED DOUBLE DISC PUMP MANUFACTURER

Wastecorp is a double disc pump manufacturer with ISO 9001, ISO 14001 certification.

Pump Specifications

Approx. Pump Operating Speed
0-400 RPM
Displacement
3.36 gal/rev
Max. Flow Capacity
1650 GPM
Power Transmission
Side mount belt driven
Pump Weight (Approx.)
8500 lbs
Solids Handling
2.5" dia
Suction/Discharge Size
10"
Total Head
Up to 75 psi

Materials of Construction

Connecting Rod
Aluminum
Pedestal Tower
Aluminum
Trunnion
Neoprene (TPE) -10°F to 200°F; Optional: Buna-N, Viton, Teflon, HBNR, EPDM
Base Frame
Heavy duty fabricated steel. Optional: 304SS, 316 SS, galvanized steel

Optional Features

Optional Drives
Piggy back, direct drive rotating frame, hydraulic, engine, pneumatic (air)
