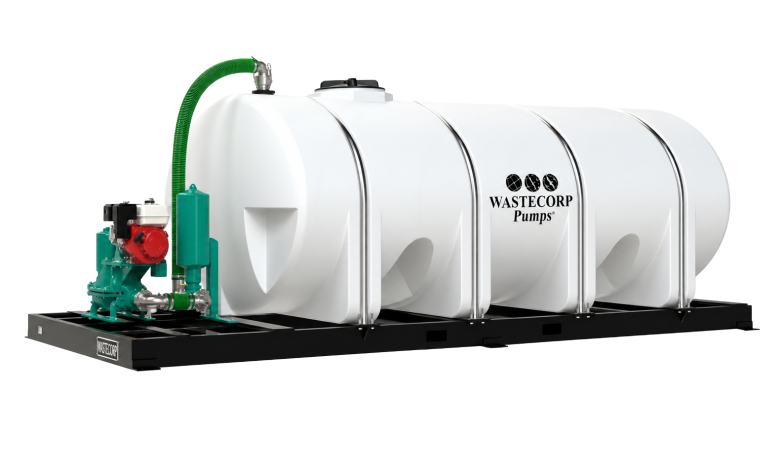

Wastecorp HW-2000 Series Skid Mounted2035 Gallon Skid Mounted Honey Wagon

2035 gallon waste tank, skid mounted. Fork lift pockets available. Lifting bail available. Your choice of Mud Sucker pump technology.

  • 2035 gallon waste tank
  • Select from single or double diaphragm pumps
  • Electric, engine, air or hydraulic power
  • 2",3" or 4" pump connections
  • Financing available


Description

MUD SUCKER PUMP TECHNOLOGY STANDARD

Wastecorp invented the Mud Sucker Diaphragm Pump and we are the only manufacturer that includes the Mud Sucker on every unit we build.

PUMP SELECTION

Your honey wagon ships complete with the Mud Sucker 2FAC Series waste pump technology standard. Optional Mud Sucker pumps are available in single or double diaphragm configurations with 2”, 3” and 4” connection sizes rated up to 220 GPM.

DRIVE SELECTION

Select from electric, engine (gas or diesel), air or hydraulic drive systems for your pumps.

GALVANIZED DECKS

Wastecorp takes the honey wagon to the next level with fully galvanized frames and decks to protect against hot and cold weather. This is a standard option on all DOT rated trailer systems.

AXLE SELECTION

Managing full tank loads at highway speeds is no easy tasks. Let Wastecorp’s engineering team help you get the right honey wagon waste containment system for your specific application

SMART TANKS

Your waste tank includes volume markers and quick access discharge and filling points. This enhanced the operator’s productivity throughout the work day.

CUSTOM ACCESSORIES

Wastecorp offers numerous custom options for specific industries. Select from automated hose reels, automated jack systems, lockable industrial rated storage cabinets, spare tires and pump coatings

ISO 9001 CERTIFIED

Wastecorp is a high rated pump manufacturer with ISO 9001 and ISO 14001 certification. With a 30 year track record in honey wagon manufacturing, you are investing in the best system from one of the best pump manufacturers. The best part is your honey wagon is manufactured near you.

SPARE PARTS AND SERVICE

Wastecorp provides in stock parts and accessories for your honey wagon. On-site optional maintenance packages are available as well.

Specifications

Standard Features

Accessories and Configurations
* Suction Hose Assy, which includes (2) 2" x 30' non-collapsible EPDM suction hose with check valve, utility ball valve and female camlock fitting; * Discharge Layflat Hose, 2" x 10' for rear tank drain; * Hose Reel
Pump Model Included in System
2FAC
Standard Connection Type
Alum. Male Camlocks

Optional Features

Optional Drives
Air, electric, gas, diesel, explosion proof, hydraulic

Pump Specifications

Approx. Pump Operating Speed
70 RPM
Gear Reducer
Siemens or SEW Eurodrive
Max. Discharge Head
50’ Vertical or 22 psi
Max. Liquid Temperature
140°F (60°C) continuous
Max. Suction Lift
20’ Vertical or 75’ Horizontal (with foot valve)
Performance Range - Max. Capacity
20 GPM
Pump Specifications - Suction/Discharge Size
2"
Solids Handling
1½” Dia. or 50% by Volume
Tank Size
2035 USG Ellip. White Poly Leg (Also available in Black for an additional cost)

Materials of Construction

Crankarm
AISI 12L14 Carbon Steel
Diaphragm
7” OD Neoprene with Reinforcement
Flapper Valves
EPDM
Pump Castings
Aluminum A356, heat treated
Pump Rod
AISI 12L14 Carbon Steel

Additional Information

Adapters
* RV Sewer Adapter; * Marine Adapter; * Potty Wand (2', 3' or 4'); * Strainer (Sq. Hole or Rd Hole)
Spare Parts Kits
65039-00; 60444-00
