Super Duty® TVP-60

60 Gallon Super Duty Vacuum Pump

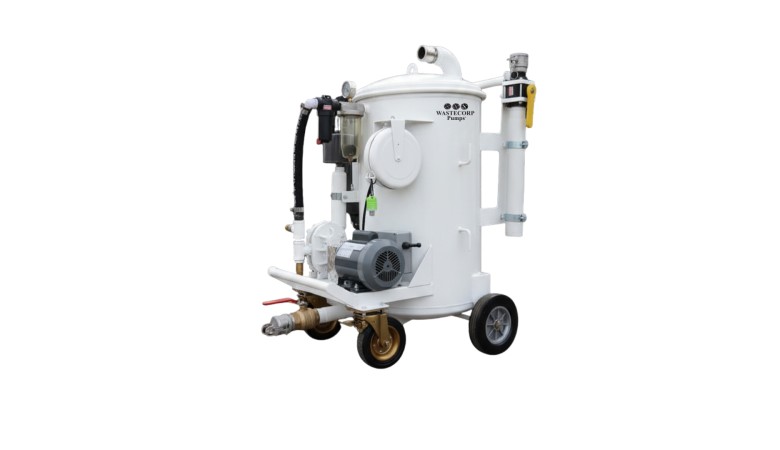

TVP Vacuum Pump Out System

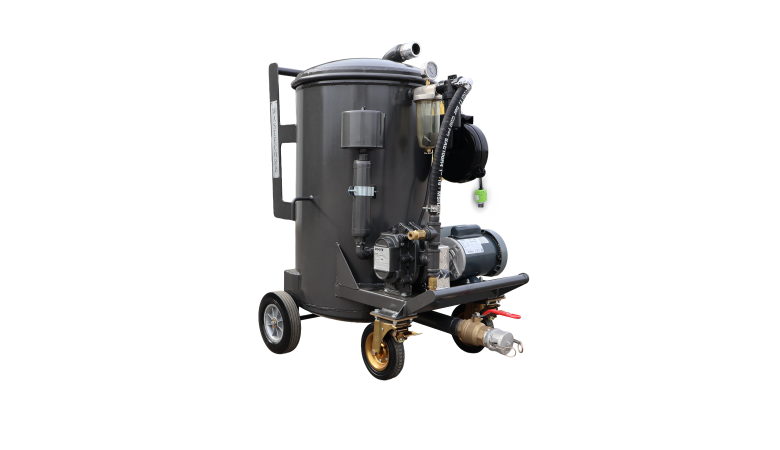

Push Cart Style

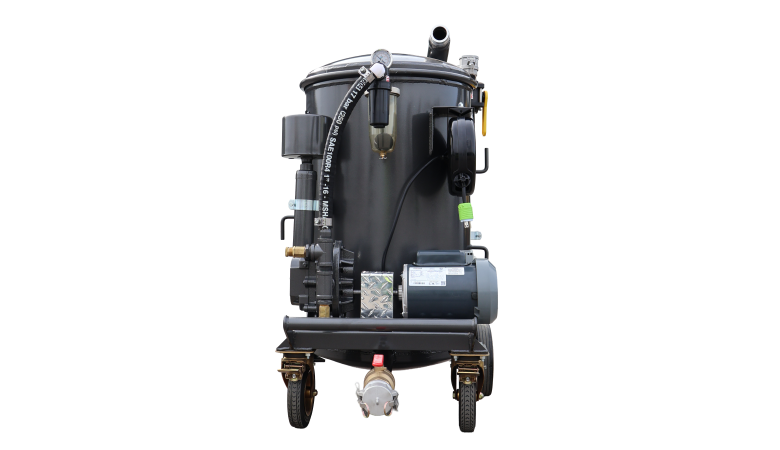

Trailer Mounted

ATV Tow Package

Super Duty® TVP-60

60 Gallon Super Duty Vacuum Pump

Vacuum pump system with control panels pump and tank. Super Duty TVP-60 is a professional grade vacuum pump designed to pump out grease traps, wastewater and septic waste.

60 gallon tank
1.5-3 hp motors available
Push Cart and Trailer Mounted (ATV tow package) available

Factsheet

Configure Your Own

Description

Specifications

Literature

Get A Quote

Description

Available in both push cart style and trailer mounted (must specify which). Wastecorp’s TVP-60 vacuum system offers cutting edge technology to meet the needs of today’s tough pump-out applications. For portable applications effortlessly move the system around the work site for extreme versatility and convenience. For stationary applications the system securely locks in place. Pump out from large distances thanks to its strong vacuum strength and pump hoses.

Specifications

Standard Features

Mounting

Permanent Mounted System ATV Mounted System Trailer Mounted System

Standard Connection Type

NPT

Pump Specifications

Max. Discharge Head

30' Vertical or 2000' Horizontal

Max. Flow Capacity

60 GPM

Max. Suction Lift

25' Vertical or 1500' Horizontal

Power Transmission

1.5HP

Suction/Discharge Size

1.5" x 2"

Tank Size

60 USG Tank

Additional Information

Adapters

* Universal Deck Adapter; *Potty Wand; *Universal Urethane Marine Suction Nozzle

Literature

TVP-60-Vacuum-Pump
