Sludge Pro 3DDWP Space Saver

3" Double Disc Space Saver Pump


  • 3" Connection
  • Pump up to 165 GPM
  • Clog resistant clack valve or ball valve models available
  • No regular maintenance required
  • Discharge head up to 180'

Factsheet



3" Double Disc
The Sludge Pro 3DDWP disc pump is designed to pump sewage and sludge up to 165 GPM.

  • Runs dry without damage
  • Rugged ball check valves = non-clogging
  • No swan neck = less maintenance
  • Free trial available for your facility
  • Discharge head up to 180'

Pump Specifications

Approx. Pump Operating Speed
0-110 RPM
Ball Valves
Urethane (Optional: Teflon)
Displacement
1.5 gal/rev
Max. Flow Capacity
165 GPM
Max. Liquid Temperature
350 °F (176 °C)
Max. Suction Lift
25'
Power Transmission
Direct Drive (Standard, Electric Motor)
Pump Weight (Approx.)
900 lbs
Solids Handling
2" dia - clack valve 1.75"dia - ball valve
Suction/Discharge Size
3"
Total Head
184' (80 psi)
Number of Discs
2

Materials of Construction

Connecting Rod
Ductile iron ASTM A 536, Grade 65-45-12
Eccentric Cam
Ductile iron ASTM A 536, Grade 65-45-12
Pedestal
Ductile iron ASTM A 536, Grade 65-45-12
Trunnion
Santoprene (standard); Optional: Neoprene, Buna-N, Viton, Teflon, Nordel
Wetted Castings
Cast iron ASTM A 48, Class 35-40 (Optional: Xylan Protective Coatings)

Standard Features

Standard Connection Type
ANSI #150 Flanged

Optional Features

Optional Drives
Air, Hydraulic, Belt Driven, Engine Driven (Gas/Diesel)
Double Disc Pump Brochure

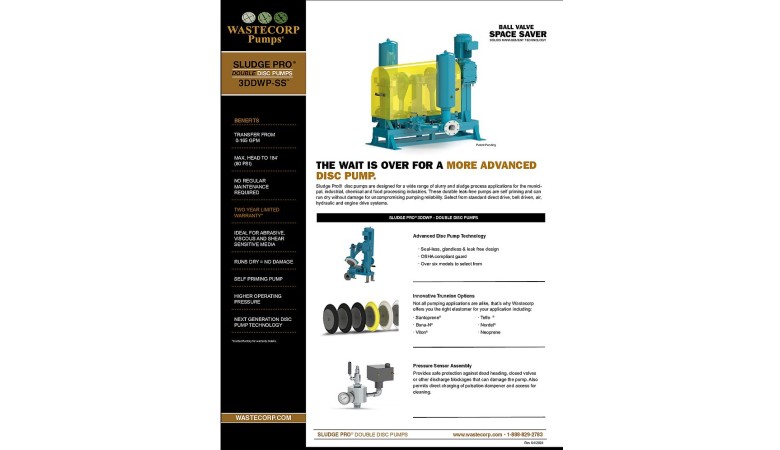

3DDWP Space Saver Ball Valve Fact Sheet
