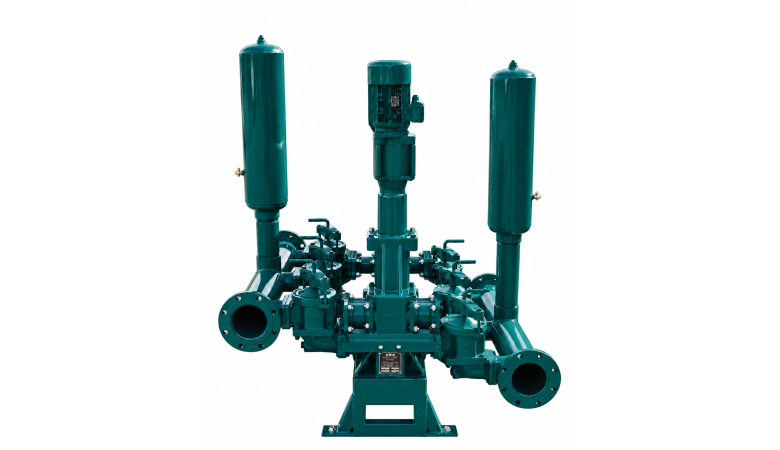

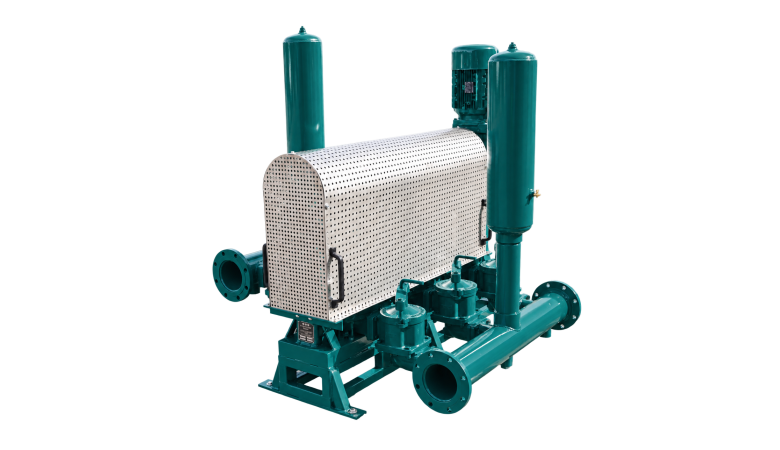

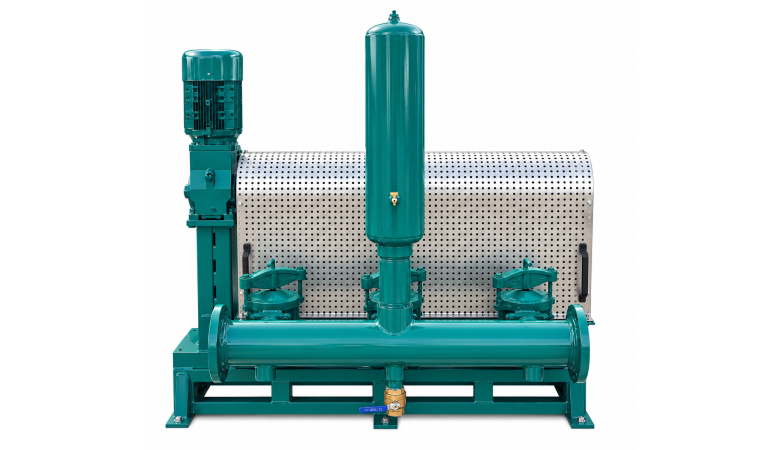

Sludge Pro 6TDWP

6" Triple Disc Pump

The Sludge Pro 6TDWP disc pump is designed to pump sewage and sludge up to 375 GPM

  • Discharge head up to 180'
  • Leak free design
  • Runs dry without damage
  • Self priming design
  • Free trial available for your facility

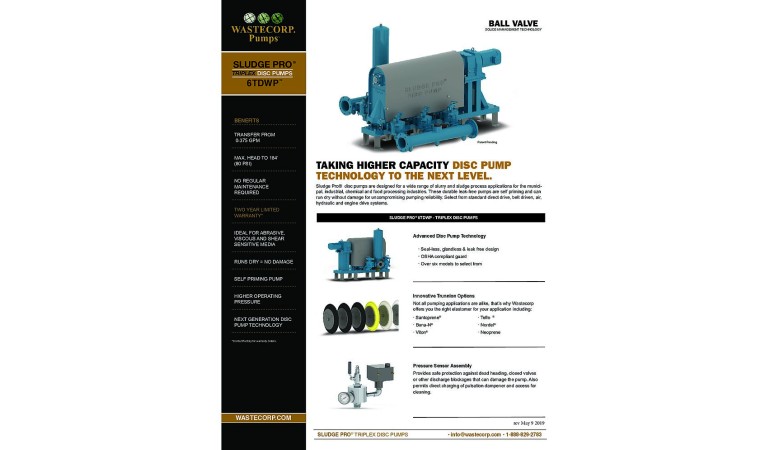

    Factsheet



    NO REGULAR MAINTENANCE REQUIRED

    The Sludge Pro is a productivity booster for your operators.

    SMART TECHNOLOGY BUILT-IN

    Wastecorp’s Sludge Pro Built-in lifting jack allows for simple replacement of pump components No need to crawl under pump. Wastecorp views crawling below a pump as dangerous.

    CLACK VALVE OR BALL VALVE AVAILABLE

    Your Sludge Pro double disc pump is the only manufacturer that offers either clack valve or ball valve technology for solids handling. Our engineering team can help you select either the ball valve or clack valve for your application.

    LIFETIME WARRANTY ON SLUDGE PRO DISCS

    Wastecorp discs have a lifetime warranty against wear. Disc also incorporates molded metal stabilizing inserts

    TRUNNION OPTIONS

    Wastecorp trunnions are available in many varieties that are compatible for various municipal sludge pumping applications and industrial fluid handling applications including chemical pumping, food processing pumps and more.

    NEXT GENERATION DRIVE SYSTEMS

    Wastecorp designs Sludge Pro Double Disc Pumps with energy saving direct drive options. Don’t waste your time with adjusting belts. Direct drive unit offer lower maintenance and enhance productivity.

    EASY-TO-CHANGE TRUNNIONS

    With A Sludge Pro Have you ever tried to change the trunnion on a traditional double disc pump? Wastecorp would never design a pump where the operator would have to crawl under a sludge pump to change a trunnion. With the Sludge Pro all maintenance is done within view of the operator using our exclusive hydraulic jack system.

    SLUDGE PRO BASE FRAMES

    The Sludge Pro pump frame is low to the ground and can be bolted directly to concrete floor without elevated concrete.

    ISO CERTIFIED DOUBLE DISC PUMP MANUFACTURER

    Wastecorp is a double disc pump manufacturer with ISO 9001, ISO 14001 certification.

    Pump Specifications

    Approx. Pump Operating Speed
    0-110 RPM
    Ball Valves
    Urethane (Optional: Teflon)
    Displacement
    3.46 gal/rev
    Max. Flow Capacity
    375 GPM
    Max. Liquid Temperature
    350 °F (176 °C)
    Max. Suction Lift
    25'
    Power Transmission
    Direct Drive (Standard, Electric Motor)
    Pump Weight (Approx.)
    2500 lbs
    Solids Handling
    2" dia - clack valve 1.75"dia - ball valve
    Suction/Discharge Size
    6"
    Total Head
    184' (80 psi)
    Number of Discs
    3

    Materials of Construction

    Connecting Rod
    Ductile iron ASTM A 536, Grade 65-45-12
    Eccentric Cam
    Ductile iron ASTM A 536, Grade 65-45-12
    Pedestal
    Ductile iron ASTM A 536, Grade 65-45-12
    Trunnion
    Santoprene (standard); Optional: Neoprene, Buna-N, Viton, Teflon, Nordel
    Wetted Castings
    Cast iron ASTM A 48, Class 35-40 (Optional: Xylan Protective Coatings)

    Standard Features

    Standard Connection Type
    ANSI #150 Flanged

    Optional Features

    Optional Drives
    Air, Hydraulic, Belt Driven, Engine Driven (Gas/Diesel)
