Trash Flow TFCC-6M

6" Pro Series Engine Driven Trash Pump

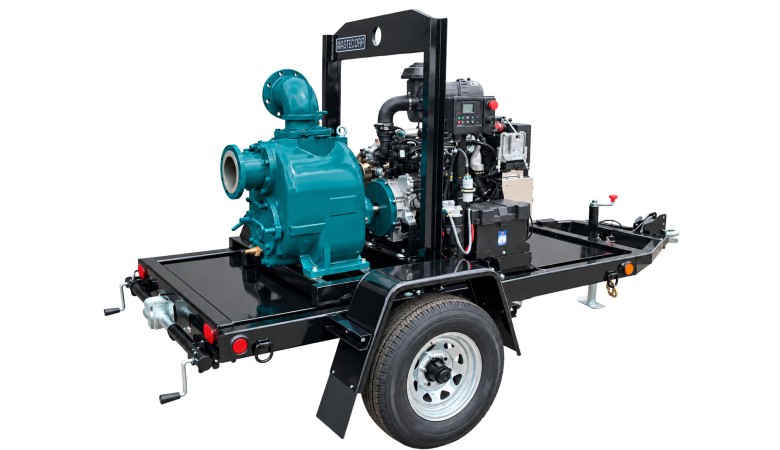

Trash Flow TFCC-6M - 6" Engine Driven Trash Pump

Tier 4 final engines

Skid mounted available

Vacuum prime assist available

Optional intelligent control panels with level float indicators available

Trash Flow TFCC-6M

6" Pro Series Engine Driven Trash Pump

6" Connection Pro Series. Pump up to 1600 GPM and up to 130 ft. of head. The Trash Flow TFCC-6M is available in skid mounted or trailer mounted units. You can also select silent pumping systems with our specialized Husher™ acoustical hut model.

  • Max Flow: 1,600 GPM
  • Max Discharge: 130 ft (39 m)
  • Connection size: 6" x 6"
  • Tier 4 Final diesel engine, control panel, 12V starter & alternator, battery




Factsheet



Description

Specifications

Literature

Related

Get A Quote


Description

6" Connection. Pump up to 1600 GPM with solids handling up to 3" and max discharge head to 130 ft. The TFCC-6M is manufactured by Wastecorp with among the shortest lead times in the pump manufacturing industry.With or Without Wheels The TFCC-6M Moves Wastewater The TFCC-6M is available as a skid mounted model complete with a heavy duty lifting bail to move around your job site. With a wide variety of diesel engine and control panel options available, you’ll get exactly what you need for your job.

PUMPING IN RESIDENTIAL AREAS?

The Trash Flow Can Quiet DownOne of the challenges when using a trash pump in residential areas is adhering to local noise regulations. Wastecorp’s solution is the Trash Flow Husher with an acoustical hut to keep sound below 70 dBa.

Intermittent Flow a Problem?

“Vacuum Prime Assist” is The Solution. Vacuum prime assist is ideal when pumping fluid with large volumes of air or pulling through long suction lines. It is also environmentally friendly as there is no carryover of liquid into the environment because of the unique float box design.

QUICK DELIVERY SCHEDULE

Wastecorp Trash Flow pump products are available within 3-6 weeks for standard self priming products. Custom pump configurations may require longer lead times.

ISO 9001 CERTIFIED TRASH PUMP MANUFACTURER

Wastecorp adheres to the highest quality pump manufacturing and reduced environmental regulations. The Trash Flow is ISO 9001 and ISO 14001 certified. The best part is, your Trash Flow is manufactured close to home.



Specifications

Standard Features

Mounting
*Trailer - Single Axle DOT compliant with e-brakes, fenders, lighting, integral fuel tank, swivel jack, ball hitch or pintel eye coupler * Optional Skid Mounted, Acoustic Enclosure
Standard Connection Type
ANSI #150 Flanged

Pump Specifications

Approx. Pump Operating Speed
1050 - 1550 RPM
Max. Discharge Head
130'
Max. Flow Capacity
1600 GPM
Max. Liquid Temperature
160°F (71°C)
Max. Operating Pressure
120 psi
Max. Suction Lift
25'
Power Transmission
64 HP Deutz D914L04, 4-Cylinder, Air Cooled Diesel Engine
Solids Handling
3" Dia.
Suction/Discharge Size
6"

Materials of Construction

Bearing Housing
Grey Iron, ASTM A48; Class 30
Cover Plate
Grey Iron, ASTM A48; Class 30
Flapper Valves
Neoprene (w/ Internal Steel Weight)
Impeller
Ductile Iron ASTM A536, Grade 60-40-18 (Max. 12.38” OD)
Impeller Shaft
AISI 4140 HT
Pump Castings
Grey Iron, ASTM A48; Class 30
Seal Plate
Grey Iron, ASTM A48; Class 30
Wear Plate
SAE 1020 Steel


Literature

Trash Flow Pump Brochure
TFCC-6M Fact Sheet
