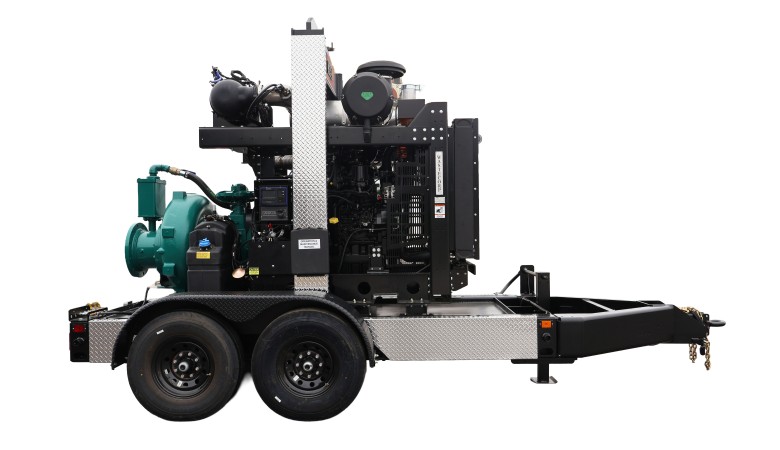

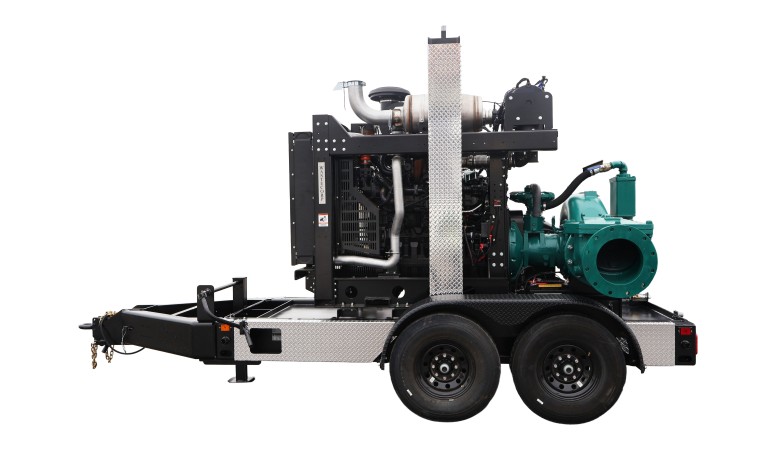

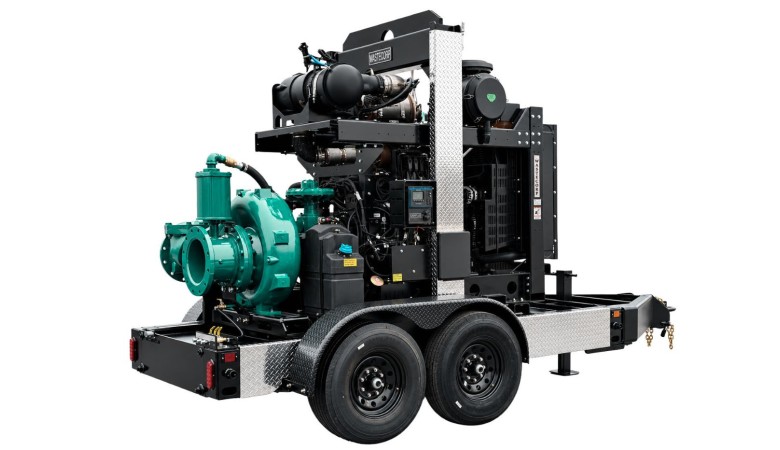

Trash Flow TFV-12M

12" Dry Prime Pump

Dry prime pump with 12" connection. Pump up to 9500 GPM with up to 200 ft. of head capabilities. Trash Flow 12" dry prime pumps are available as portable or stationary models.

  • Max Flow: 9500 GPM
  • Max head: 200 ft
  • Connection size: 12" x 12"


VENTURI AIR EJECTOR PRIMING SYSTEM

Wastecorp’s intelligent priming system, uses a Quincy compressor to rapidly evacuate air from the suction line which is exhausted to atmosphere.

CUSTOMIZE YOUR DRY PRIME PUMP THE WAY YOU NEED IT

With Wastecorp, you get a host of options to customize your dry prime pump the way you need it. Select from diesel, electric or natural gas motors, sound attenuated enclosures, trailer or skid mount, float regulator systems and much more.

HUSHER SERIES SOUND ATTENUATED ENCLOSURE

For pumping in residential areas or where reduced noise is critical, Wastecorp offers the Trash Flow TVP Husher Series. This sound attenuated lockable enclosure reduces noise to 68 dBa @ 7m.

TIER 4 FINAL ENGINES

Trash Flow engine driven pumps use Tier-4 final engines. Select from Deutz, CAT or John Deere diesel engines.

OPTIONAL INTELLIGENT CONTROL PANELS

Wastecorp control panels enable automated pump operation with minimal monitoring. This together with optional level control floats provides greater efficiency and productivity.

EASY MAINTENANCE, LONG LIFE CYCLES

Trash Flow components can be adjusted and replaced to renew pump performance.

QUICK DELIVERY SCHEDULE

Wastecorp dry prime pump products are available within 3-6 weeks for standard products. Custom pump configurations may require longer lead times.

ISO 9001 CERTIFIED DRY PRIME PUMP MANUFACTURER

Wastecorp adheres to the highest quality dry prime pump manufacturing and reduced environmental impact. The Trash Flow is ISO 9001 and ISO 14001 certified. The best part is, your dry prime pump is manufactured close to home.

Pump Specifications

Approx. Pump Operating Speed
580 - 1780 RPM
Connection Size
12"x12"
Max. Flow Capacity
9500 GPM
Max. Liquid Temperature
176°F
Power Transmission
Deutz BF6L913C, 6-Cylinder Tier 4 Final Diesel Engine
Solids Handling
3.6"
Suction/Discharge Size
12"
Total Head
325'

Materials of Construction

Bearing Housing
Ductile Iron
Impeller
CA6NM SS (Max. 17.25" OD)
Impeller Shaft
17-4 PH SS
Pump Castings
Ductile Iron
Wear Plate
Ductile Iron

Standard Features

Mounting
Trailer Mounted, Skid Mounted, Acoustic Enclosure
Standard Connection Type
ANSI #150 Flanged

Optional Features

Optional Drives
Electric, Natural Gas
