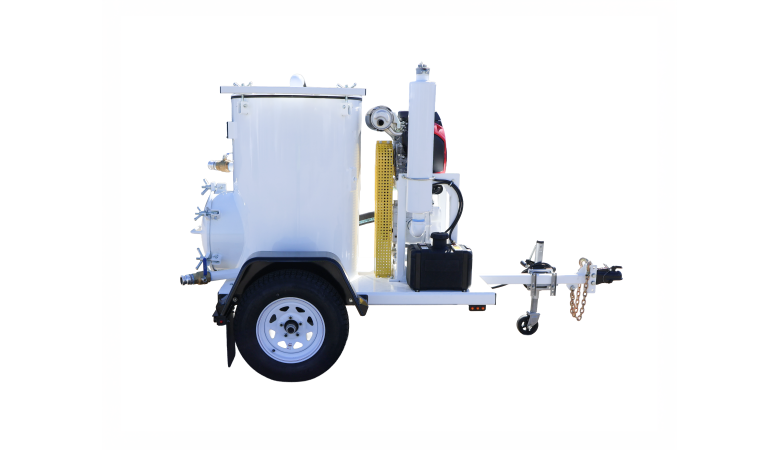

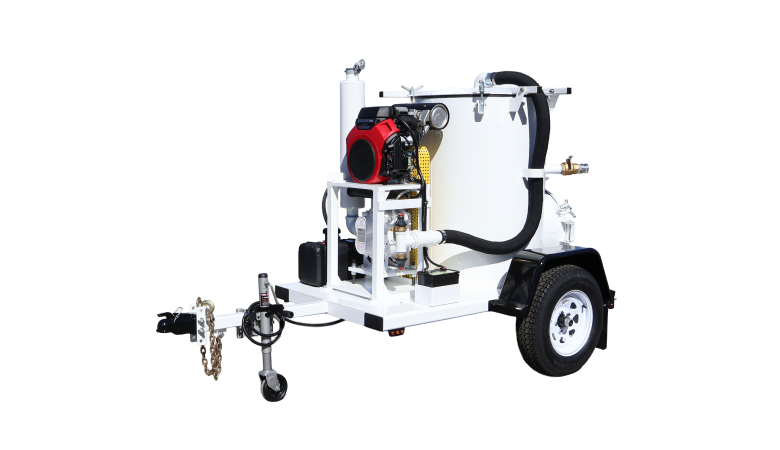

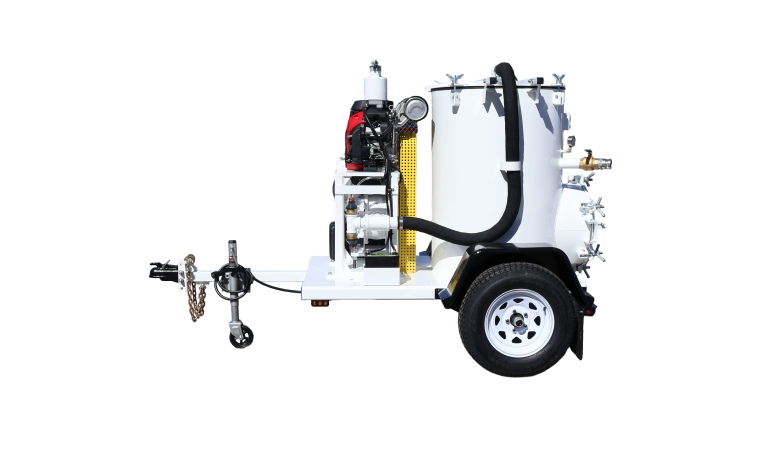

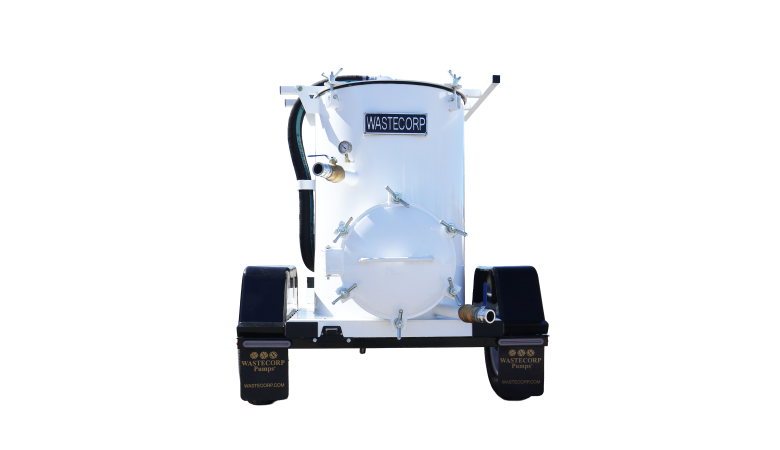

Super Duty® TVP-90B

90 Gallon Vacuum Trailer

The Wastecorp Super Duty TVP-90B is a compact vacuum system designed for operation in confined spaces, congested work zones and high-traffic areas. It enables utility companies, contractors and public works departments to complete small to midsize vacuum projects without the cost and complexity of operating a full-size vacuum truck.

  • 90 US Gallon Steel Tank
  • Trailer or Skid Packages available
  • 345 CFM at 14in Heavy Duty Positive Displacement Blower with Silencer Vacuum Relif Valve
  • 2-1/2in (63.5 mm) x 10ft (3.0 m) flexible wire-reinforced rubber suction base hose
  • 2in (50.8 mm) x 6-1/2ft (2.0 m) steel suction wand with handles
  • Easy disconnect cam lock hose couplings
  • High liquid level shut off switch
  • Pressure Gauge

Factsheet



PUMP SYSTEM

A vacuum pump that is designed for high suction pumping needs like excavation, grease trap waste, grit, wastewater containing solids and other tough fluids.

CONFIGURATION OPTIONS

Wastecorp Super Duty  compact vacuum pump systems are available as trailer mounted, turf tire mounted, skid mounted or dolly style  units. Wastecorp can custom mount your vacuum pump on an existing truck for additional charge.

MANWAY OPENINGS

Optional man way allows access to tank interior 20”, 25” or 36” diameter sizes.

TANK LEVEL INDICATOR

Optional tank fluid level indicator or sight glass is available as an option.

OFFLOAD PORT

Standard 3”,4” or 6” offload port are available. Customer must specify at the time of order for any customization.

ENGINE OPTIONS

Select from gas or diesel engines to power your vacuum pump.

VACUUM PUMP FINANCING

Financing for your Super Duty Vacuum Pump is available. Contact you Wastecorp representative at 1-888-829-2783 for more information.

ISO 9001 CERTIFIED VACUUM PUMP MANUFACTURER

Wastecorp is a high rated pump manufacturer with ISO 9001 and ISO 14001 certification. With a long track record in vacuum pump system manufacturing, you are investing in the best system from one of the best pump manufacturers.

Pump Specifications

Engine
Honda GX630 20.8 HP Gas Engine
Engine Type
Air-cooled 4-stroke OHV
Max. Flow Capacity
345 CFM
Starting Method
Electric
Tank Size
90 US Gallon (Aluminum or Steel)

Standard Features

Accessories and Configurations
2-1/2in (63.5 mm) x 10ft (3.0 m) flexible wire-reinforced rubber suction base hose 2in (50.8 mm) x 6-1/2ft (2.0 m) steel suction wand with handles
Mounting
ATV Wagon, Tractor, Utility Trailer
