Valve cutaway diagram

Mud Sucker® 6FAC-M-DD™

6" Engine Pro Flapper Double Diaphragm Pump

Pump up to 325 GPM with the engine driven Pro Flapper Series Mud Sucker® 6FAC-M-DD. Using next generation Mud Sucker EPDM flapper valve technology access the flappers in seconds

  • Runs dry without damage
  • Solids Handling capabilities up to 2.5"
  • Severe duty EPDM flappers
  • Electric start gas or diesel engines
  • Designed for tough industrial pump applications

Factsheet



ELECTRIC DOUBLE DIAPHRAGM PUMP PROTECTION

The Mud Sucker 4FAC-M-DD includes a standard emergency pressure relief valve. Since a diaphragm pump is also a positive displacement pump, a pressure relief valve reduces the chances of damage in an over pressurization event.

EXCLUSIVE CONTOURED VELOCITY CHANNEL

The only diaphragm pump in the industry with an exclusive pump body designed to enhance the flow of slurries and debris laden liquids to prevent clogs.

SANTOPRENE® DIAPHRAGMS

These heavy duty diaphragms are tear resistant and are specially formulated to pump waste oils, municipal sewage and petroleum based products.

HEAVY DUTY PUMP ROD

When pumping tough liquids, the Mud Sucker pump rod enhances productivity with heavy duty engineering to outlast other makes.

MUD SUCKER OPERATOR SAFETY

Ships complete with safety guards. Pump operator does not come into contact with moving components when guards are in place (removed in illustration above for clarity).

MUD SUCKER SPARE PARTS KITS

Genuine OEM Mud Sucker double diaphragm pump spare parts kits are available same day (in select areas) or next day service if required.

Pump Specifications

Approx. Pump Operating Speed
66 RPM
Engine
• 11HP; Honda GX Gas Engine electric start. • 9HP; Kohlar KD or Hatz 1B Diesel Engine - Optional 40 Gallon auxiliary fuel tank
Gear Reducer
Siemens or SEW Eurodrive
Max. Discharge Head
50'
Max. Flow Capacity
325 GPM
Max. Liquid Temperature
140°F (60°C) continuous
Max. Suction Lift
25'
Power Transmission
Honda GX Gas Engine (Electric Start) or Kohler KD or Hatz 1B Diesel Engine with optional 40 Gallon auxiliary fuel tank
Pump Weight (Approx.)
400 lbs
Solids Handling
2.5"
Suction/Discharge Size
4"

Materials of Construction

Crankarm
AISI 1045 HR Steel
Diaphragm
13" OD Neoprene with Reinforcement
Flapper Valves
EPDM
Pump Castings
Aluminum A356, heat treated
Pump Rod
AISI 12L14 Carbon Steel

Standard Features

Mounting
ATV Wagon Kit or Utility Trailer Assy
Standard Connection Type
MNPT

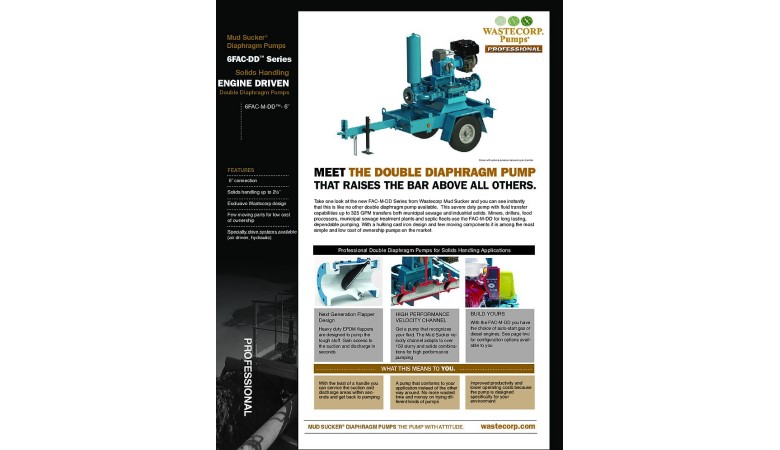

6FAC-M-DD Product Bulletin
Mud Sucker Brochure
