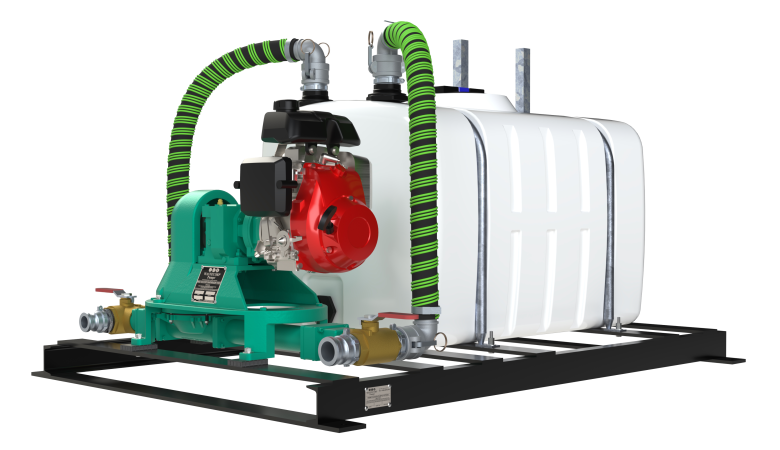

Wastecorp® HW 100-200 Series

100 Gallon - 200 Gallon Pump Out

100 gallon, 150 gallon or 200 gallon skid mounted honey wagons with your choice of electric, engine, air or hydraulic drives. Designed for waste containment including septic waste, waste oil, select hazardous liquids, wastewater and more.

  • Exclusive three way valve system
  • Pump into or out of the tank
  • 2" or 3" Mud Sucker® pump options
  • Select either 100 gallon, 150 gallon or 200 gallon tanks
  • Electric, engine, air or hydraulic drives systems
  • Financing available


MUD SUCKER PUMP TECHNOLOGY STANDARD

Wastecorp invented the Mud Sucker® Diaphragm Pump and we are the only manufacturer that includes the Mud Sucker on every unit we build

PUMP SELECTION

Your honey wagon ships complete with the Mud Sucker 2FAC Series waste pump technology standard. Optional Mud Sucker pumps are available in single or double diaphragm configurations with 2", 3" and 4" connection sizes rated up to 220 GPM.

DRIVE SELECTION

Select from electric, engine (gas or diesel), air or hydraulic drive systems for your pumps.

SMART TANKS

Your waste tank includes volume markers and quick access discharge and filling points. This enhanced the operator’s productivity throughout the work day.

CUSTOM ACCESSORIES

Wastecorp offers numerous custom options for specific industries. Select from automated hose reels, automated jack systems, lockable industrial rated storage cabinets, spare tires and pump coatings

ISO 9001 CERTIFIED

Wastecorp is a high rated pump manufacturer with ISO 9001 and ISO 14001 certification. With a 30 year track record in honey wagon manufacturing, you are investing in the best system from one of the best pump manufacturers. The best part is your honey wagon is manufactured near you.

SPARE PARTS AND SERVICE

Wastecorp provides in stock parts and accessories for your honey wagon. On-site optional maintenance packages are available as well

Pump Specifications

Approx. Pump Operating Speed
70 RPM
Gear Reducer
Siemens or SEW Eurodrive
Max. Discharge Head
50' Vertical or 22 psi
Max. Flow Capacity
20 GPM
Max. Suction Lift
20' Vertical or 75' Horizontal (with foot valve)
Solids Handling
1.5" Dia. or 50% by Volume
Suction/Discharge Size
2"
Tank Size
100 USG Flat Bottom, White Poly Utility Tank

Materials of Construction

Crankarm
AISI 12L14 Carbon Steel
Diaphragm
7" OD Neoprene with Reinforcement
Flapper Valves
EPDM
Pump Castings
Aluminum A356, heat treated
Pump Rod
AISI 12L14 Carbon Steel

Standard Features

Accessories and Configurations
* Suction Hose Assy, which includes (1) 2" x 30' non-collapsible EPDM suction hose with check valve, utility ball valve and female camlock fitting; * Hose, 2" x 10' non-collapsible EPDM * Hose Reel
Pump Model Included in System
2FAC
Standard Connection Type
Alum. Male Camlocks

Optional Features

Optional Drives
Electric, gas, diesel, explosion proof, air, hydraulic

Additional Information

Adapters
* RV Sewer Adapter; * Marine Adapter; * Potty Wand (2', 3' or 4'); * Strainer (Sq. Hole or Rd Hole)
Spare Parts Kits
65039-00; 60444-00
