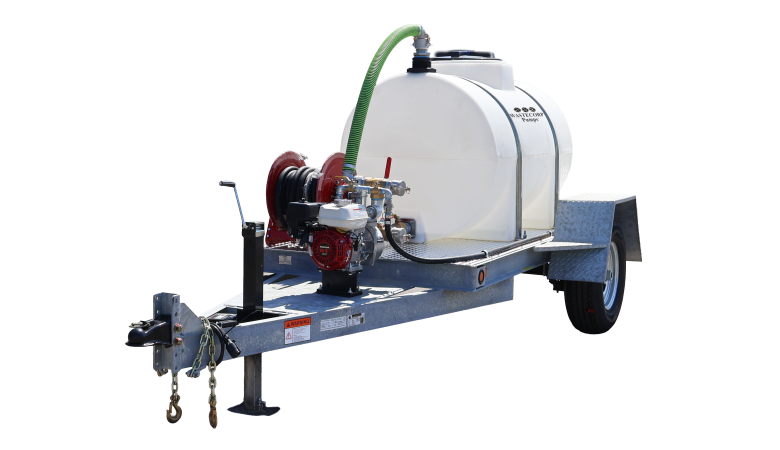

300 Gallon Water Trailer

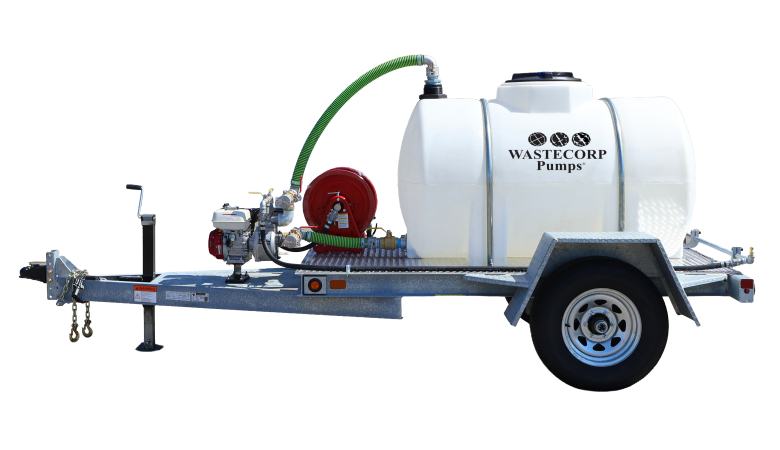

325 gallon trailer mounted water trailer. Single axle galvanized trailer with rear sprayers and optional side sprayers. DOT compliant model shown

325 gallon/1136 litre tank
Trash Flow® Model: TFX-2M, 2” x 2” centrifugal
pump powered by a 3.5 HP Honda® GX-120 gas engine
3500 lbs single axle DOT compliant trailer
Standard spray hose 2"x25'
Standard fill hose: 2"x20'
Accessory and hose bin

Factsheet

Configure Your Own

The WT-300 and Construction Sites = The Perfect Mix

When using water trailers on construction sites or public works jobs you need to know that there is a difference in makes and models available to you. Take Wastecorp's WT-300 Series for example - This premium water trailer is designed for the punishing conditions you know all too well. A premium galvanized frame, LED lighting package, break-away switch and step deck fenders are all standard on DT models. This help you get more use out of your investment. The most important components, the pump and valve system, are engineered with brass to withstand years of pressure from the pump and all hosing is made of premium industrial grade materials

Premium Pump and Valve System

Wastecorp's easy-start trash pump provide the power to distribute high or low pressure water when you need it. You can also select different sizes of pump if required

Standard Components

Wastecorp's galvanized trailers resist corrosion from tough conditions including exposure to salt, heat, cold and select chemicals. The valve system is easy to use with brass components for high wear life

Pump Specifications

Max. Discharge Head

98'

Max. Flow Capacity

185 GPM

Max. Suction Lift

26'

Power Transmission

4.8HP Honda GX 160 Gas Engine

Pump Weight (Approx.)

112 lbs

Solids Handling

1" Dia.; 30% Max. Suspended Solids

Suction/Discharge Size

Tank Size

325 USG Horiz. White Poly Leg (Also available in Black for an additional cost)

Materials of Construction

Impeller

High Chrome Cast Iron

Pump Castings

Aluminum Die Casting

Standard Features

Accessories and Configurations

* 1 x Non-Collapsible PVC clear/white helix hose with camlocks, 2” x 25 ft. (for spraying and filling tank) with adj. spray nozzle * 1 x Black rubber garden hose, ¾” x 50 ft with spray nozzle (for watering) * Hose Reel Assy, Manual hand crank to fit 3/4” x 50 ft. hose * Rear Spray Bar Nozzle

Mounting

DOT Highway Trailer, Single 5200 lb Axle, Galvanized, Fenders (GVWR: 5200 lb); Hitch Connection 2-5/16" Ball or 3" Pintle Hook

Pump Model Included in System

TFX-2M
