WT-500 Series

525 Gallon Professional Water Trailer

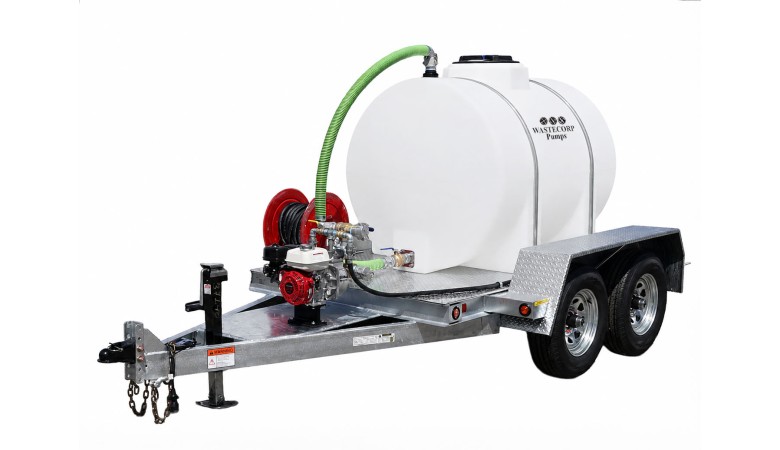

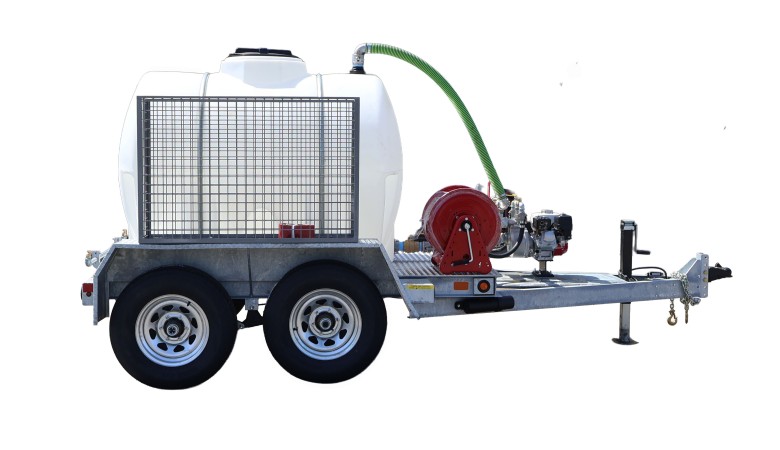

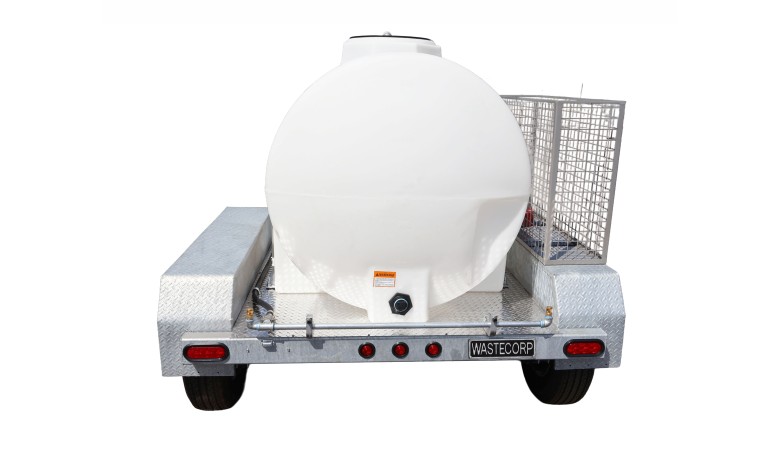

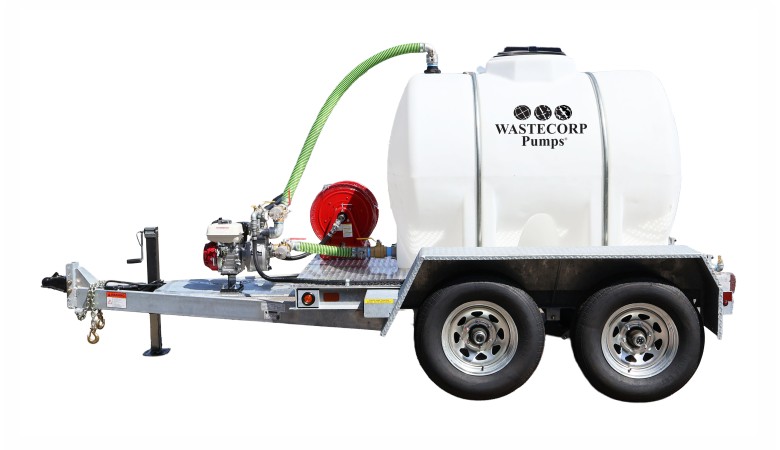

525 gallon trailer mounted water trailer. Double axle, galvanized trailer with rear sprayers and optional side sprayers. DOT compliant model shown.

  • 525 gallon/1893 litre tank
  • Trash Flow® Model: TFX-2M, 2” x 2” centrifugal
    pump powered by a 4HP Honda GX120 gas engine
  • Tandem axle DOT compliant trailer
  • Standard spray hose 2"x25'
  • Standard fill hose: 2"x20'
  • Delivery garden spray hose 3/4" x 50'
  • Accessory and hose bin


HIGH PRESSURE WATER PUMPS

Wastecorp knows that you use your water trailer for multiple tasks like power washing, landscaping needs, construction, potable water needs and more. That’s why we offer several high pressure water pumps for your water trailer.

GALVANIZED DECKS

Wastecorp takes water trailers and water buffalos to the next level with fully galvanized frames and decks to protect against hot and cold weather. This is a standard option on all DOT rated trailer systems (not available on utility trailer models).

AXLE SELECTION

Managing full tank loads at highway speeds is no easy task. Let Wastecorp’s engineering team help you get the right water trailer for your specific application.

SMART TANKS

Your waste tank includes volume markers and quick access discharge and filling points. This enhanced the operator’s productivity throughout the work day.

CUSTOM ACCESSORIES

Wastecorp offers numerous custom options for specific industries. Select from automated hose reels, automated jack systems, lockable industrial rated storage cabinets, spare tires and more.

NSF COMPLIANT WATER TRAILERS AVAILABLE

Wastecorp offers water trailers with stainless steel tanks and hoses compliant for drinking water. Ask your water trailer expert about your options.

ISO 9001 CERTIFIED

Wastecorp is a high rated water trailer manufacturer with ISO 9001 and ISO 14001 certification. With a 30 year track record in water trailer manufacturing, you are investing in the best system from one of the best pump manufacturers. The best part is your water trailer is manufactured near you.

SPARE PARTS AND SERVICE

Wastecorp provides in stock parts and accessories for your water trailer. On-site optional maintenance packages are available as well.

Pump Specifications

Max. Discharge Head
98'
Max. Flow Capacity
185 GPM
Max. Suction Lift
26'
Power Transmission
4.8HP Honda GX 160 Gas Engine
Pump Weight (Approx.)
112 lbs
Solids Handling
1" Dia.; 30% Max. Suspended Solids
Suction/Discharge Size
2"
Tank Size
525 USG Horiz. White Poly Leg (Also available in Black for an additional cost)

Materials of Construction

Impeller
High Chrome Cast Iron
Pump Castings
Aluminum Die Casting

Standard Features

Accessories and Configurations
* 1 x Non-Collapsible PVC clear/white helix hose with camlocks, 2” x 25 ft. (for spraying and filling tank) with adj. spray nozzle * 1 x Black rubber garden hose, ¾” x 50 ft with spray nozzle (for watering) * Hose Reel Assy, Manual hand crank to fit 3/4” x 50 ft. hose * Rear Spray Bar Nozzle
Mounting
DOT Highway Trailer, Tandem 3500 lb Axle, Galvanized, Fenders (GVWR: 7000 lb); Hitch Connection 2-5/16" Ball or 3" Pintle Hook
Pump Model Included in System
TFX-2M
