Trash Flow TFCCH-3

3" High Head Self Priming Centrifugal Pump

Wastecorp's Trash Flow TFCC-H Series are designed for pump applications that have higher than normal discharge head requirements. Wastecorp offers three models including 3", 4" and 6" connection sizes. With the Trash Flow TFCCH Series you can pump up to 1350 GPM. Maximum discharge head up to 200 ft.

  • Pump up to 350 GPM (79 m^3/h)
  • High discharge head up to 200 ft. (60 m)
  • Solids handling up to 1 1/8"



Factsheet



Versatile Self Priming Centrifugal Trash Pumps

The Trash Flow TFCC Series features a large volute design and enhanced re-priming capabilities. TFCC pumps are designed for municipal wastewater pumping and industrial solids handling. Solids handling capabilities up to 3”.

Mount Your Trash Pump The Way You Need It.

Direct drive, close coupled or belt driven models available for every wet prime model we manufacture.

Easy Maintenance, Long Life cycles

  Trash Flow components can be adjusted and replaced to renew pump performance. No disassembly or shim requirements are necessary.

Back Pull-Out Design

The Trash Flow’s back pull-out design enables maintenance staff to quickly service the pump safely without the need for special tools.  Clean-Out Port  Operators can easily inspect and service the clean-out without draining the pump casing.

Quick Delivery Schedule

Wastecorp Trash Flow pump products are available within 3-6 weeks for standard self priming products. Custom pump configurations may require longer lead times.

ISO 9001 Certified Centrifugal Pump Manufacturer

Wastecorp adheres to the highest quality pump manufacturing and reduced environmental regulations. The Trash Flow is ISO 9001 and ISO 14001 certified. The best part is your Trash Flow is manufactured close to home.

Pump Specifications

Approx. Pump Operating Speed
850 - 2150 RPM
Connection Size
3"x3"
Max. Discharge Head
200'
Max. Flow Capacity
350 GPM
Max. Liquid Temperature
160°F (71°C)
Max. Operating Pressure
128 psi
Power Transmission
Direct Drive
Pump Weight (Approx.)
490 lbs
Solids Handling
1.125" Dia.

Materials of Construction

Bearing Housing
Grey Iron, ASTM A48; Class 30
Cover Plate
Grey Iron, ASTM A48; Class 30
Flapper Valves
Neoprene (w/ Internal Steel Weight)
Impeller
Ductile Iron ASTM A536, Grade 60-40-18 (Max. 11” OD)
Impeller Shaft
AISI 4140 HT
Pump Castings
Grey Iron, ASTM A48; Class 30
Seal Plate
Grey Iron, ASTM A48; Class 30
Wear Plate
SAE 1020 Steel

Standard Features

Mounting
Trailer Mounted, Lift Station, Acoustic Enclosure, Skid Mounted
Standard Connection Type
ANSI #150 Flanged

Optional Features

Optional Drives
Belt Driven
Trash Flow Pump Brochure

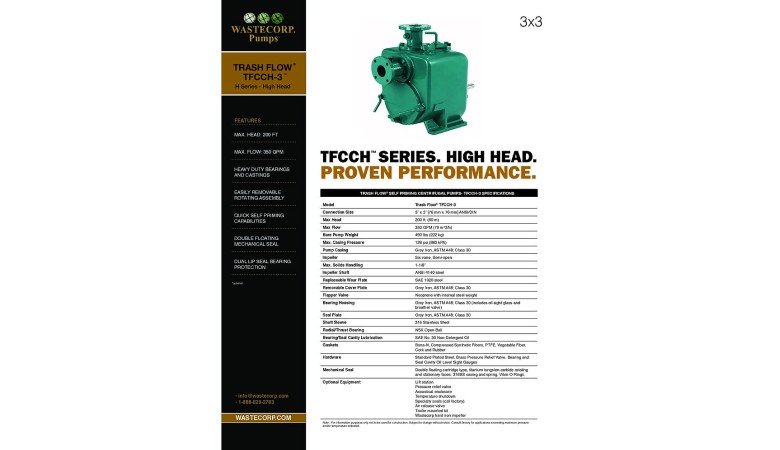

TFCCH-3 High Head Fact Sheet
