Trash Flow TFCCH-6

6" High Head Self Priming Centrifugal Pump

Wastecorp's Trash Flow TFCC-H Series are designed for pump applications that have higher than normal discharge head requirements. Wastecorp offers three models including 3", 4" and 6" connection sizes. With the Trash Flow TFCCH Series you can pump up to 1350 GPM. Maximum discharge head can reach 200 ft


Factsheet



High head pump with 6" Connection. Pump up to 1350 GPM with discharge head up to 190 ft. Designed for municipal, industrial and commercial wastewater handling applications

Pump Specifications

Approx. Pump Operating Speed
850 - 1950 RPM
Connection Size
6"x6"
Max. Discharge Head
190'
Max. Flow Capacity
1350 GPM
Max. Liquid Temperature
160°F (71°C)
Max. Operating Pressure
123 psi
Power Transmission
Direct Drive
Pump Weight (Approx.)
920 lbs
Solids Handling
1.25" Dia.

Materials of Construction

Bearing Housing
Grey Iron, ASTM A48; Class 30
Cover Plate
Grey Iron, ASTM A48; Class 30
Flapper Valves
Neoprene (w/ Internal Steel Weight)
Impeller
Ductile Iron ASTM A536, Grade 60-40-18 (Max. 12.50” OD)
Impeller Shaft
AISI 4140 HT
Pump Castings
Grey Iron, ASTM A48; Class 30
Seal Plate
Grey Iron, ASTM A48; Class 30
Wear Plate
SAE 1020 Steel

Standard Features

Mounting
Trailer Mounted, Lift Station, Acoustic Enclosure, Skid Mounted
Standard Connection Type
ANSI #150 Flanged

Optional Features

Optional Drives
Belt Driven
Trash Flow Pump Brochure

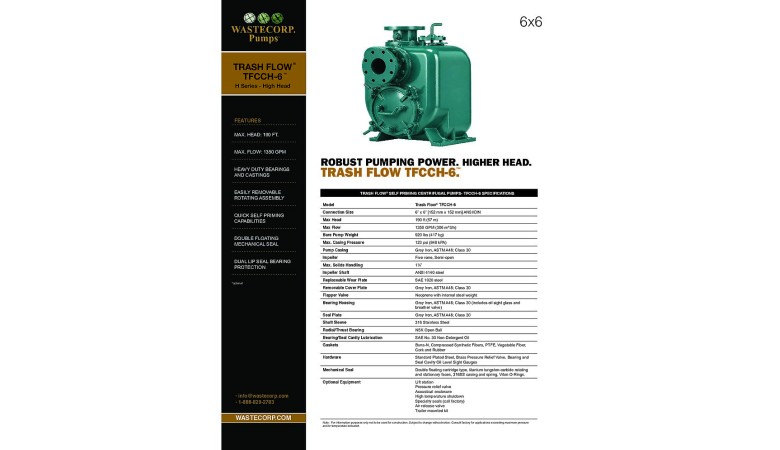

TFCCH-6 High Head Fact Sheet
