Super Duty® TVP-1000 Series

1000 Gallon Skid Mounted Vacuum Pump

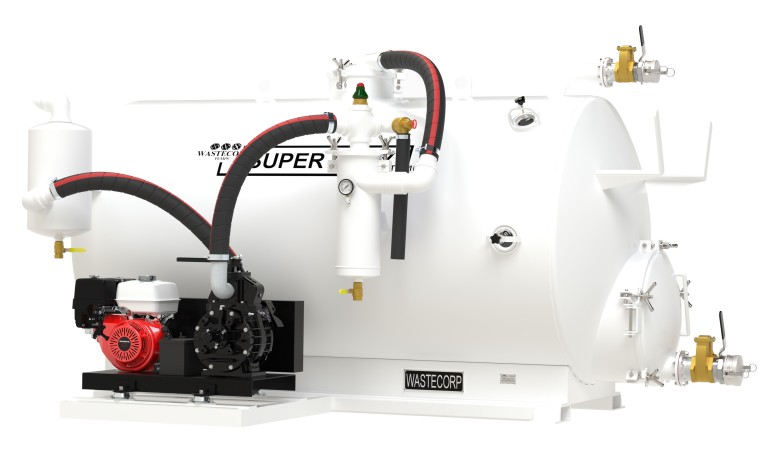

The TVP-1000 skid mounted (slide-in) series is a professional vacuum pump with a 1000 gallon waste tank. The TVP-1000 can be mounted in a truck, truck chassis or on land

  • 1000 US gallon tank
  • Gas or diesel engines
  • Select from 230-532 CFM vacuum power available
  • Financing available

Literature



PUMP SYSTEM

A vacuum pump is designed for high suction pumping needs like septic pumping,  grease waste, grit, wastewater containing solids and other tough fluids. Pumps are available with 230-532 CFM vacuum power depending on your application.

CONFIGURATION OPTIONS

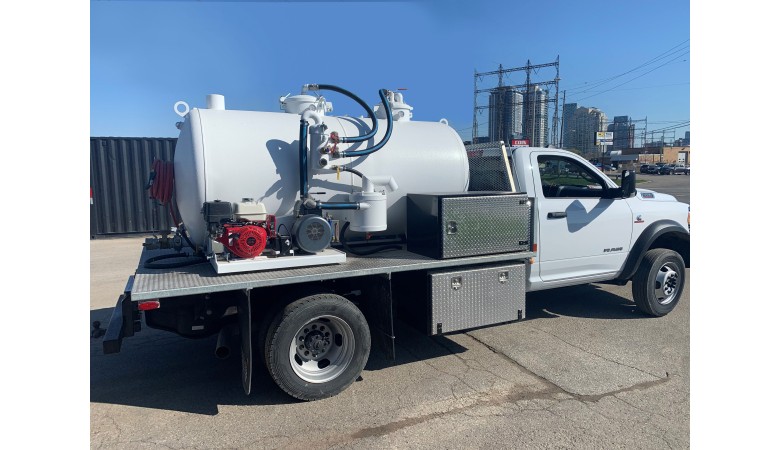

All Wastecorp Super Duty vacuum pump systems are available as trailer mounted, truck mounted or skid mounted units. Wastecorp can custom mount your vacuum pump on an existing truck for additional charge.

MANWAY OPENINGS

Optional man way allows access to tank interior 20”, 25” or 36” diameter sizes.

TANK LEVEL INDICATOR

Optional tank fluid level indicator or sight glass is available as an option.

OFFLOAD PORT AND AUTOMATION

Standard 3”,4” or 6” offload port are available. Customer must specify at the time of order. Wastecorp also offers a Tilt-N-Go system to automatically tilt the tank and offload waste.

ENGINE OPTIONS

Select from gas or diesel engines to power your vacuum pump.

VACUUM PUMP FINANCING

Financing for your Super Duty Vacuum Pump is available. Contact you Wastecorp representative at 1-888-829-2783 for more information.

ISO 9001 CERTIFIED VACUUM PUMP MANUFACTURER

Wastecorp is a high rated pump manufacturer with ISO 9001 and ISO 14001 certification. With a long track record in vacuum pump system manufacturing, you are investing in the best system from one of the best pump manufacturers. The best part is your vacuum pump system is manufactured near you

Pump Specifications

Max. Flow Capacity
230CFM - 532 CFM
Power Transmission
14HP-24HP Honda Gas Engine Electric Start (230-350 CFM)
Tank Size
1000 USG (Aluminum or Steel)

Standard Features

Accessories and Configurations
*2”/3” x 30’ Suction Hose with 5’ Vac Suction Wand * 4” Offload Port w/ Bronze Lever Valve * 4” x 10’ Lay Flat Discharge Hose * 25" Rear Manway Door
Mounting
Slide-in | Skid Mounted

Optional Features

Optional Drives
Diesel engine, electric motor (14-24 hp)
