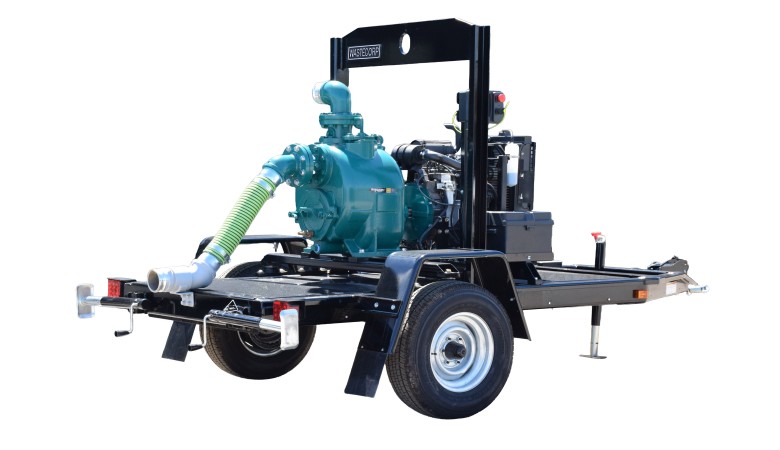

Trash Flow TFCC-6ML

6" Entry Level Engine Driven Trash Pump

6" Connection. Pump up to 1430 GPM. Tier 4 Final diesel engine. The Trash Flow TFCC-6ML is an engine driven trash pump designed for industrial and construction professionals, rental fleets and more. Priced competitively with all major trash pump makes.

  • Max Flow: 1185 GPM
  • Max Discharge: 104ft
  • Connection size: 6" x 6"
  • 56 HP Tier 4 Final

Factsheet



VERSATILE SELF PRIMING CENTRIFUGAL TRASH PUMPS

The Trash Flow TFCC-6ML Series features a large volute design and enhanced re-priming capabilities. TFCC pumps are designed for municipal wastewater pumping and industrial solids handling. Solids handling capabilities up to 3”.

TIER 4 FINAL ENGINES

Trash Flow engine driven pumps use Tier-4 final engines. Select from Deutz, CAT or John Deere diesel engines.

OPTIONAL INTELLIGENT CONTROL PANELS

Wastecorp control panels enable automated pump operation with minimal monitoring. This together with optional level control floats provides greater efficiency and productivity.

VACUUM PRIME ASSIST

If you are pumping through long suction lines consider Wastecorp's optional vacuum prime assist. This feature is available on all Trash Flow models.

EASY MAINTENANCE, LONG LIFE CYCLES

Trash Flow components can be adjusted and replaced to renew pump performance. No disassembly or shim requirements are necessary.

BACK PULL-OUT DESIGN

The Trash Flow’s back pull-out design enables maintenance staff to quickly service the pump safely without the need for special tools.

CLEAN-OUT PORT

Operators can easily inspect and service the clean-out without draining the pump casing.

QUICK DELIVERY SCHEDULE

Wastecorp Trash Flow pump products are available within 3-6 weeks for standard self priming products. Custom pump configurations may require longer lead times.

ISO 9001 CERTIFIED TRASH PUMP MANUFACTURER

Wastecorp adheres to the highest quality pump manufacturing and reduced environmental regulations. The Trash Flow is ISO 9001 and ISO 14001 certified. The best part is, your Trash Flow is manufactured close to home.

Pump Specifications

Approx. Pump Operating Speed
1050 - 1550 RPM
Max. Discharge Head
104'
Max. Flow Capacity
1430 GPM
Max. Liquid Temperature
160°F (71°C)
Max. Suction Lift
25'
Power Transmission
56HP Tier 4 Final
Solids Handling
3" Dia.
Suction/Discharge Size
6"

Materials of Construction

Bearing Housing
Grey Iron, ASTM A48; Class 30
Cover Plate
Grey Iron, ASTM A48; Class 30
Flapper Valves
Neoprene (w/ Internal Steel Weight)
Impeller
Ductile Iron ASTM A536, Grade 60-40-18 (Max. 12.38” OD)
Impeller Shaft
AISI 4140 HT
Pump Castings
Grey Iron, ASTM A48; Class 30
Seal Plate
Grey Iron, ASTM A48; Class 30
Wear Plate
SAE 1020 Steel

Standard Features

Mounting
* Trailer - Single Axle DOT compliant with e-brakes, fenders, lighting, swivel jack, ball hitch or pintel eye coupler * Fuel Tank - DOT Compliant 45 USG complete with fuel lines and mounting brackets * Optional Skid Mounted, Acoustic Enclosure
Standard Connection Type
ANSI #150 Flanged
