Trash Flow TFCC-3M

3" Pro Series Engine Driven Trash Pump

3" Connection, municipal/industrial diesel trash pump. Pump up to 460 GPM with solids handling up to 2.5" and max discharge head to 115 ft. Available in DOT compliant trailer mounted, skid mounted, municipal bypass and Husher silent models. Select from intelligent control panels, float switches and hose options.

Max Flow: 450 GPM
Max Discharge: 110 ft (33m)
Connection size: 3" x 3"
Tier 4 Final diesel engine, control panel, 12V starter
& alternator

Factsheet

VERSATILE SELF PRIMING CENTRIFUGAL TRASH PUMPS

The Trash Flow TFCC-3M Series features a large volute design and enhanced re-priming capabilities. TFCC pumps are designed for municipal wastewater pumping and industrial solids handling. Solids handling capabilities up to 3”.

TIER 4 FINAL ENGINES

Trash Flow engine driven pumps use Tier-4 final engines.

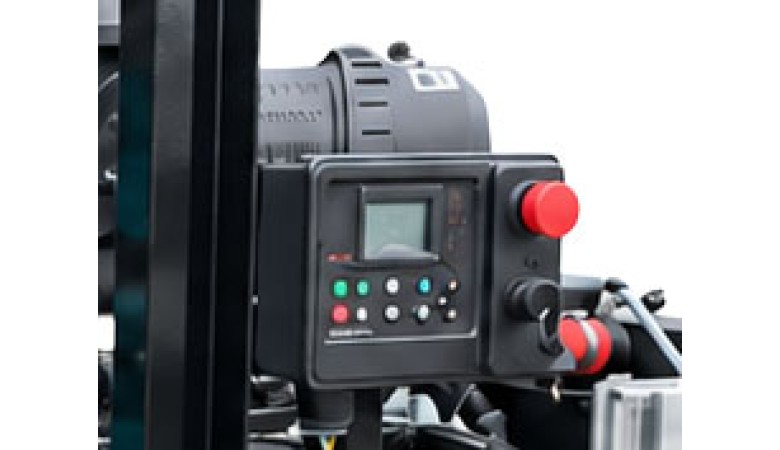

OPTIONAL INTELLIGENT CONTROL PANELS

Wastecorp control panels enable automated pump operation with minimal monitoring. This together with optional level control floats provides greater efficiency and productivity.

VACUUM PRIME ASSIST

If you are pumping through long suction lines consider Wastecorp's optional vacuum prime assist. This feature is available on all Trash Flow models.

EASY MAINTENANCE, LONG LIFE CYCLES

Trash Flow components can be adjusted and replaced to renew pump performance. No disassembly or shim requirements are necessary.

BACK PULL-OUT DESIGN

The Trash Flow’s back pull-out design enables maintenance staff to quickly service the pump safely without the need for special tools.

CLEAN-OUT PORT

Operators can easily inspect and service the clean-out without draining the pump casing. QUICK DELIVERY SCHEDULE Wastecorp Trash Flow pump products are available within 3-6 weeks for standard self priming products. Custom pump configurations may require longer lead times.

ISO 9001 CERTIFIED TRASH PUMP MANUFACTURER

Wastecorp adheres to the highest quality pump manufacturing and reduced environmental regulations. The Trash Flow is ISO 9001 and ISO 14001 certified. The best part is, your Trash Flow is manufactured close to home.

Pump Specifications

Approx. Pump Operating Speed

1450 - 2150 RPM

Max. Discharge Head

110'

Max. Flow Capacity

450 GPM

Max. Liquid Temperature

160°F (71°C)

Max. Operating Pressure

120 psi

Max. Suction Lift

25'

Power Transmission

43 HP Deutz D914L03, 3-Cylinder, Air Cooled Diesel Engine

Solids Handling

2.5" Dia.

Suction/Discharge Size

Materials of Construction

Bearing Housing

Grey Iron, ASTM A48; Class 30

Cover Plate

Grey Iron, ASTM A48; Class 30

Flapper Valves

Neoprene (w/ Internal Steel Weight)

Impeller

Ductile Iron ASTM A536, Grade 60-40-18 (Max. 8.75” OD)

Impeller Shaft

AISI 4140 HT

Pump Castings

Grey Iron, ASTM A48; Class 30

Seal Plate

Grey Iron, ASTM A48; Class 30

Wear Plate

SAE 1020 Steel

Standard Features

Mounting

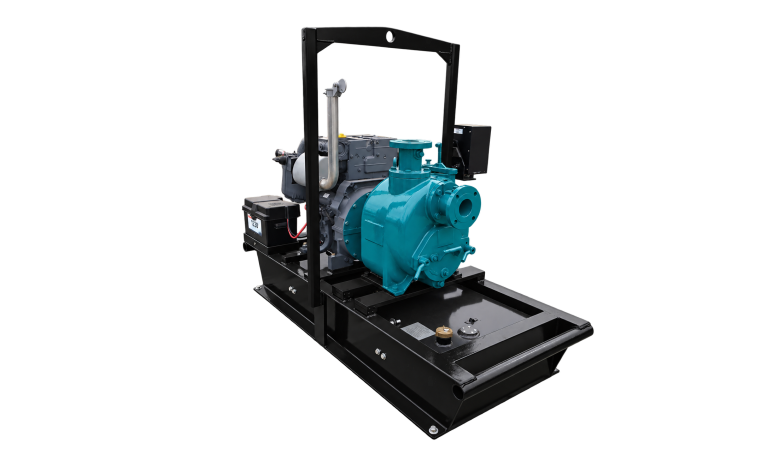

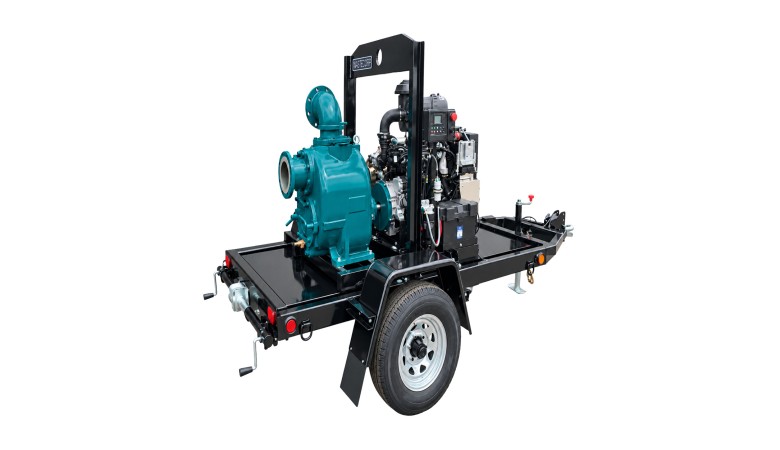

*Trailer - Single Axle DOT compliant with e-brakes, fenders, lighting, integral fuel tank, swivel jack, ball hitch or pintel eye coupler * Optional Skid Mounted, Acoustic Enclosure

Standard Connection Type

ANSI #150 Flanged
