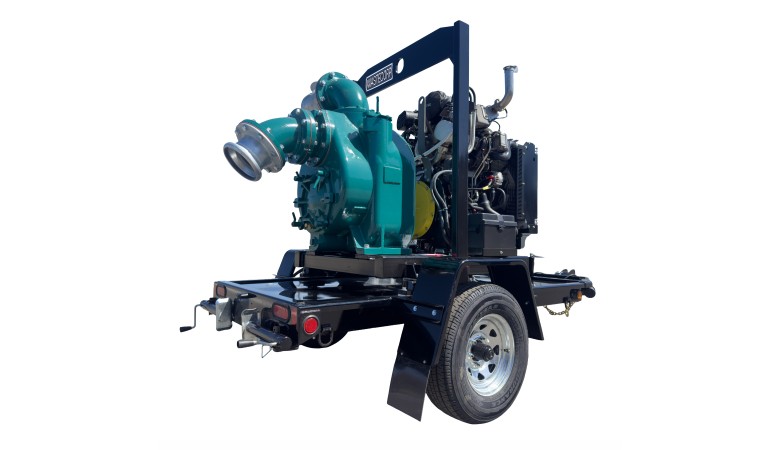

Trash Flow TFCC-8M

8" Pro Series Diesel Driven Trash Pump

8" connection. Pump up to 2700 GPM with up to 110 ft of discharge head capabilities.

  • Max Flow: 2700 GPM
  • Max Discharge: 110 ft (33 m)
  • Connection size: 8" x 8"
  • Tier 4 Final diesel engine, control panel, 12V starter & alternator, battery



Factsheet



VERSATILE SELF PRIMING CENTRIFUGAL TRASH PUMPS

The Trash Flow TFCC Series features a large volute design and enhanced re-priming capabilities. TFCC pumps are designed for municipal wastewater pumping and industrial solids handling. Solids handling capabilities up to 3”.

TIER 4 FINAL ENGINES

Trash Flow engine driven pumps use Tier-4 final engines.

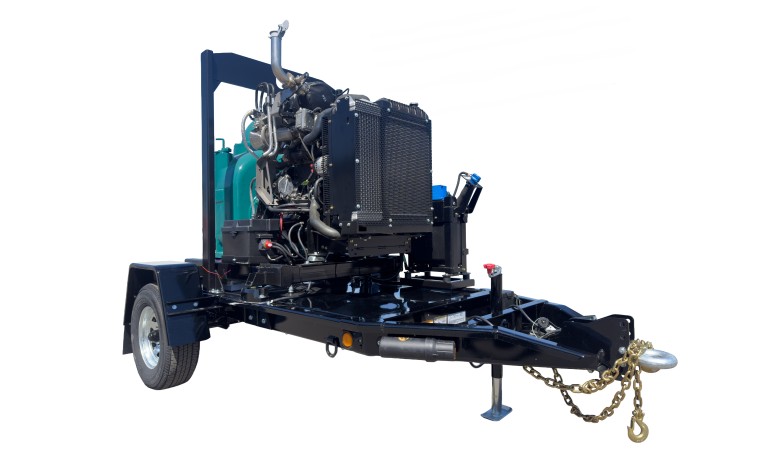

OPTIONAL INTELLIGENT CONTROL PANELS

Wastecorp control panels enable automated pump operation with minimal monitoring. This together with optional level control floats provides greater efficiency and productivity.

VACUUM PRIME ASSIST

If you are pumping through long suction lines consider Wastecorp's optional vacuum prime assist. This feature is available on all Trash Flow models.

EASY MAINTENANCE, LONG LIFE CYCLES

Trash Flow components can be adjusted and replaced to renew pump performance. No disassembly or shim requirements are necessary.

BACK PULL-OUT DESIGN

The Trash Flow’s back pull-out design enables maintenance staff to quickly service the pump safely without the need for special tools.

CLEAN-OUT PORT

Operators can easily inspect and service the clean-out without draining the pump casing. QUICK DELIVERY SCHEDULE Wastecorp Trash Flow pump products are available within 3-6 weeks for standard self priming products. Custom pump configurations may require longer lead times.

ISO 9001 CERTIFIED TRASH PUMP MANUFACTURER

Wastecorp adheres to the highest quality pump manufacturing and reduced environmental regulations. The Trash Flow is ISO 9001 and ISO 14001 certified. The best part is, your Trash Flow is manufactured close to home.

Pump Specifications

Approx. Pump Operating Speed
1050 - 1350 RPM
Max. Discharge Head
110'
Max. Flow Capacity
2700 GPM
Max. Liquid Temperature
160°F (71°C)
Max. Operating Pressure
120 psi
Max. Suction Lift
25'
Power Transmission
83 HP Deutz D914L06, 6-Cylinder, Air Cooled Diesel Engine
Solids Handling
3" Dia.
Suction/Discharge Size
8"

Materials of Construction

Bearing Housing
Grey Iron, ASTM A48; Class 30
Cover Plate
Grey Iron, ASTM A48; Class 30
Flapper Valves
Neoprene (w/ Internal Steel Weight)
Impeller
Ductile Iron ASTM A536, Grade 60-40-18 (Max. 14.75” OD)
Impeller Shaft
AISI 4140 HT
Pump Castings
Grey Iron, ASTM A48; Class 30
Seal Plate
Grey Iron, ASTM A48; Class 30
Wear Plate
SAE 1020 Steel

Standard Features

Mounting

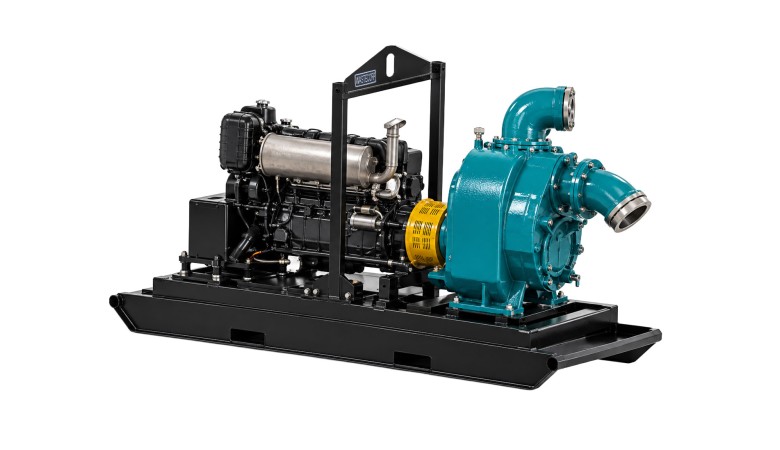

*Trailer - Single Axle DOT compliant with e-brakes, fenders, lighting, integral fuel tank, swivel jack, ball hitch or pintel eye coupler * Optional Skid Mounted, Acoustic Enclosure
Standard Connection Type
ANSI #150 Flanged
